• A direct driven highly effcient IE3 motor with optimized screw centrifugal impeller aspirates the water from the bottom and sprays it back on the surface.

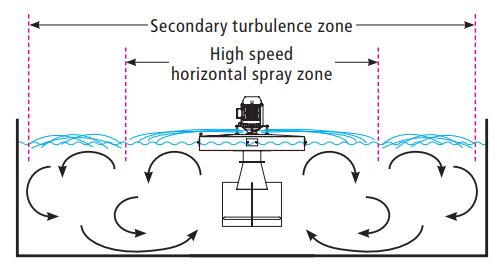

• The spray is horizontally injected into the water surface over 360° and the turbulence creates
microbubbles which are moved downwards. The result is a maximum oxygen transfer effciency.
• The flow pattern generates a perfect oxygen dispersion and full homogenization even in deep
basins and on large surfaces.

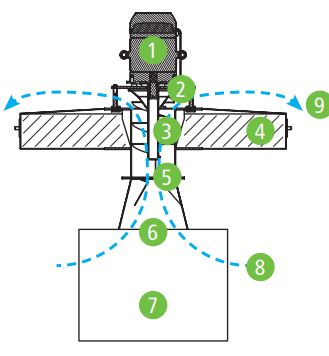

Your advantages
1) Air-cooled IE3 motor: no submerged sealing = extended lifetime, high effciency
2) Direct drive: no gearbox = low maintenance
3) Wide range: available from 0.75 kW to 55 kW
4) Installation: floating = fast and simple
5) Screw centrifugal impeller: low forces on the sludge, no blocking by fbers
6) Aspiration cone adaptable to deep or shallow basins
7) Stabilization cross: no vortex problems, high floating stability
8) High turbulence: good mixing and high alpha-factor
9) Horizontal spray: low aerosols
• Materials: stainless steel AISI 304 or 316
• Lowest possible invest and lifetime cost
Máy khuấy bề mặt
• A direct driven highly effcient IE3 motor with optimized screw centrifugal impeller aspirates the water from the bottom and sprays it back on the surface.
• The spray is horizontally injected into the water surface over 360° and the turbulence creates
microbubbles which are moved downwards. The result is a maximum oxygen transfer effciency.
• The flow pattern generates a perfect oxygen dispersion and full homogenization even in deep
basins and on large surfaces.
Your advantages
1) Air-cooled IE3 motor: no submerged sealing = extended lifetime, high effciency
2) Direct drive: no gearbox = low maintenance
3) Wide range: available from 0.75 kW to 55 kW
4) Installation: floating = fast and simple
5) Screw centrifugal impeller: low forces on the sludge, no blocking by fbers
6) Aspiration cone adaptable to deep or shallow basins
7) Stabilization cross: no vortex problems, high floating stability
8) High turbulence: good mixing and high alpha-factor
9) Horizontal spray: low aerosols
• Materials: stainless steel AISI 304 or 316
• Lowest possible invest and lifetime cost
Applications
• Activated sludge WWTPs
• SBR and MBR plants
• Lagoon WWTPs
• Natural waters
